Domes

High-Performance Optical Domes

Custom Optical Domes for Demanding Applications

We specialize in the production of precision optical domes engineered to meet the strictest optical and mechanical requirements. Our domes are designed for use in harsh environments such as aerospace, defense, underwater imaging, and industrial sensing.

Materials

We offer a variety of advanced materials selected for their optical clarity, durability, and transmission across spectral bands:

• Sapphire (Al₂O₃):
  • Exceptional hardness and scratch resistance
  • High transmission from UV to mid-IR
  • Ideal for high-pressure and high-speed applications
• Zinc Sulfide (ZnS & Cleartran®):
  • Broad transmission from visible to LWIR
  • Excellent for thermal imaging systems
  • Milder in cost vs. sapphire for IR systems
• Other Materials Available:
  • Fused silica, BK7, Germanium, Silicon, Spinel
  • Selection guided by application and spectral range

Precision Capabilities

Our domes are manufactured to exacting standards, ensuring high optical performance and mechanical reliability:

• Diameter Range: Up to 250 mm (custom sizes available)
• Wall Thickness Tolerance: ±0.1 mm or better
• Sphericity: λ/4 or better at 632.8 nm
• Surface Quality: 40-20 or better (MIL-PRF-13830B)
• Coating Options: Anti-reflection (AR), hard carbon, customized for VIS/IR bands

Applications

• Electro-optical systems
• Missile seekers and guidance systems
• Aerospace and UAV imaging
• Subsea observation systems
• Harsh environment sensors

Why Choose Us?

• In-house metrology and polishing
• Complex geometry expertise
• Proven reliability in defense and aerospace programs
• Short lead times for prototypes and production

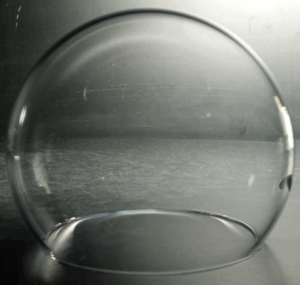

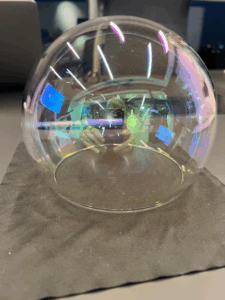

Hyper hemispherical domes

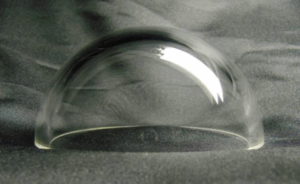

Sapphire domes
